Nema 23 Stepper Motor 1.26N.m (6.35mm shaft)
0 out of 5
Categories: , Smoking Regulations, Stone Setting

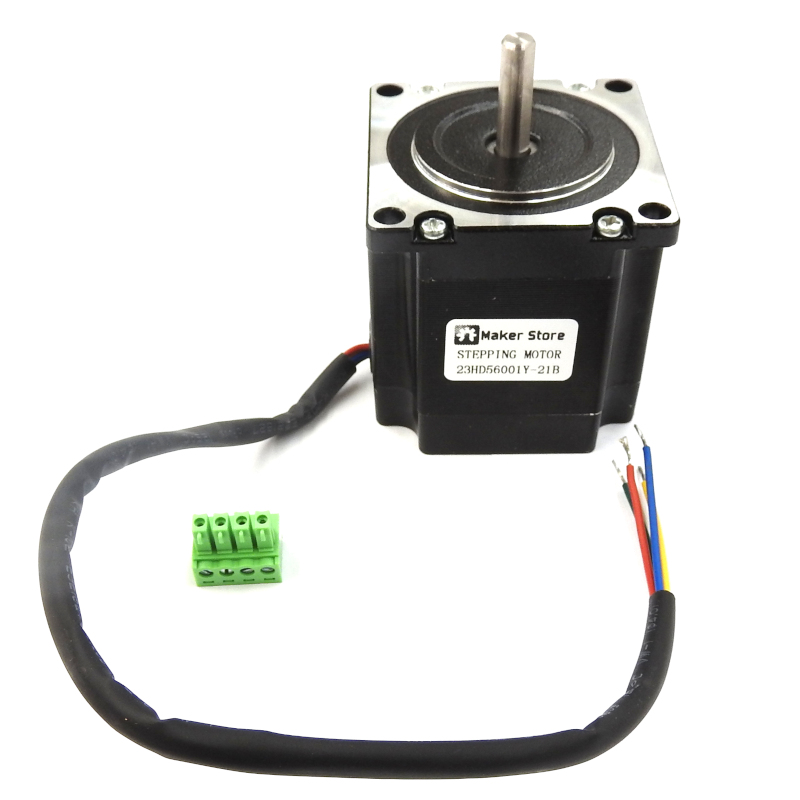

The Maker Store NEMA23 stepper motor is a great choice for any project. It comes with a 150mm lead and a 4 pin EDG connector for easy connection. All Nema23 Stepper motors now come with an EDG 4P Connector for an easy plug and play solution. With an all-black body, these motors also look fantastic! Specification: Step Angle:1.8° Rated current:2.8A DC Rated Voltage: 3.36V Winding dc resistance(25℃):1.2Ω±10% Winding inductance:2.3mH±20% Holding torque:≥1.26N.m Shaft diameter: 6.35mm or 1/4″
