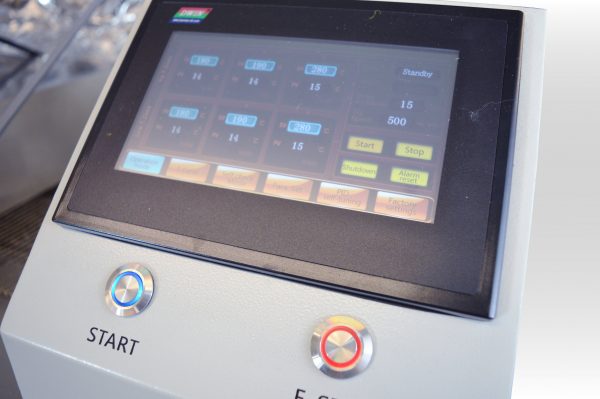

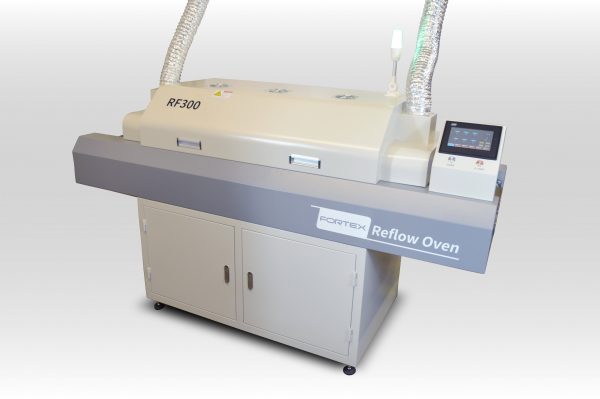

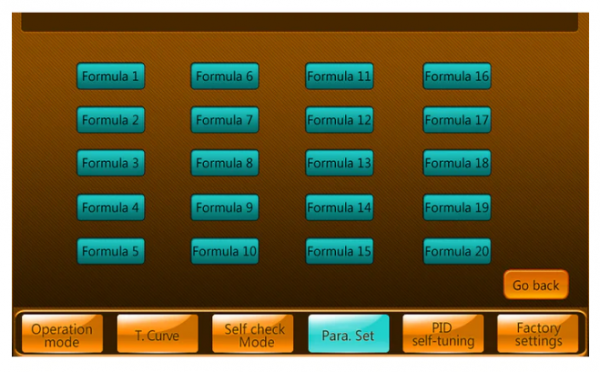

The RF300 is a very popular desktop conveyorized soldering Reflow Oven. It fits perfectly in small to medium production lines. This conveyor reflow oven uses horizontal convection heating technology to accomplish reflow at much lower temperatures than normally achievable. Using constant, even heating, a great variety of board sizes will reach reflow temperature with the same heat profile. By eliminating set-up time your production line can work to its fullest capacity. With reduced energy consumption and carefully controlled air-flow and exhaust systems, your plant will only benefit from its introduction. Highlights: Suitable for single sided as well as double sided PCB’s. Can also be used as a conveyor drying oven for many product types Tunnel conveyor oven offering easier/better performing profiling over drawer style reflow oven Profiler module to aid Profiling Easy processing through an intuitive touch screen user interface allowing the perfect reflow profile to be achieved Easy lift clam shell hood Adjustable conveyor Speed Single Phase or three phase operation Forced air convection provides uniform heating and prevents shadowing. 6 zones with maximum temperatures up to 400°C (752°F) . Can be used for both lead free and leaded soldering 2 x 100mm Diameter spigots for connection of supplied hose to take away fumes from the location of the oven Two detachable thermo couples for measuring substrate temperatures. Exhaust pipe system included for oven output Heating Zone: Upper 3 Heating Zones Bottom 3 Heating Zones Heating Method: Hot air Cooling Zone: 2 Natural Air Cooling Heat Tunnel length: 1060mm Mesh Width: 300mm PCB Width Allowance: Max. 280mm PCB Height Allowance: ≤20mm Mesh Height: 880±20mm Conveyor Speed: 0-1350mm/min Conveyor Direction: Left→Right (Right→Left) Preheat Time: 15-20mins Soldering Time: 3.5-5.5mins Temperature Range: 0°C-400°C Temperature Control: PID Digital Temperature Control System Voltage: AC 220V/AC 380V, 50Hz Starting Power: 9KW Working Power: 3KW Net Weight: 200kgs Gross Weight: 292kgs Machine Size: L2100×W680×H1200mm Package Dimension: 2208*776*1355mm
